Global Sensor Systems


  • System is available with or without automatic braking.
  • System is turned on by placing gear shift lever in reverse.
  • If an object is dectected while backing up, the brakes are applied automatically, at the same instant activating a sonalert and warning light on the driver's control box.
  • In the event the system is installed without automatic braking the driver is warned of an object in the protected area, by the sounding of the sonalert and the warning light mounted on the driver's control box.
  • Moving the gear shift to any other position will turn the system off.

  • Reduced Insurance Costs
  • Less Down Time
  • Increased Productivity
  • Reduced Repair Costs
  • Less Risk & Liability

Over 35years ago the principals of the company developed the Global Search-Eye Sensor System. (incorporating infra-red technology) for vehicles, to prevent backing accidents.

The Search-Eye Sensor System is widely used throughout North America on many industrial & Commerical fleets.

Global's Infra-Red Sensor

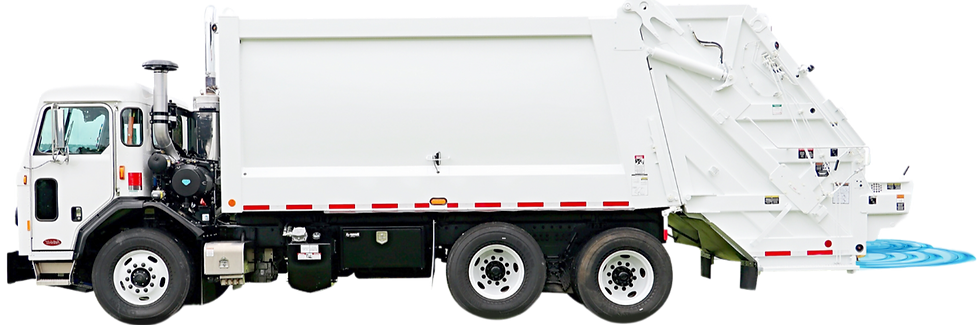

Global's System is used on variety of heavy task vehicles to prevent backing accidents. For more information please click here to check our page of examples of vehicles.

System Specifications

Voltage : 12V
Temperature Range: -40 to 173 F
Dimensions (sensor): 2 1/2 x 4 1/2 x 1 1/8 inches
Weight (sensor): 6.0 ounces

3 Sensors
1 Control Box
1 Air Brake Valve
1 Shuttle Valve
1 Junction Box
3 Mounting Plates

3 Mounting Boxes
Stainless Hardware
75' Wiring Harness
Installation Manual
Troubleshoot Manual


To download Company's Brochure, please click here.

To download Global's Installation Manual click here.

To download Global's Trouble Shooting Guide click here.

Introducing New Global Express Cube, please click here.
